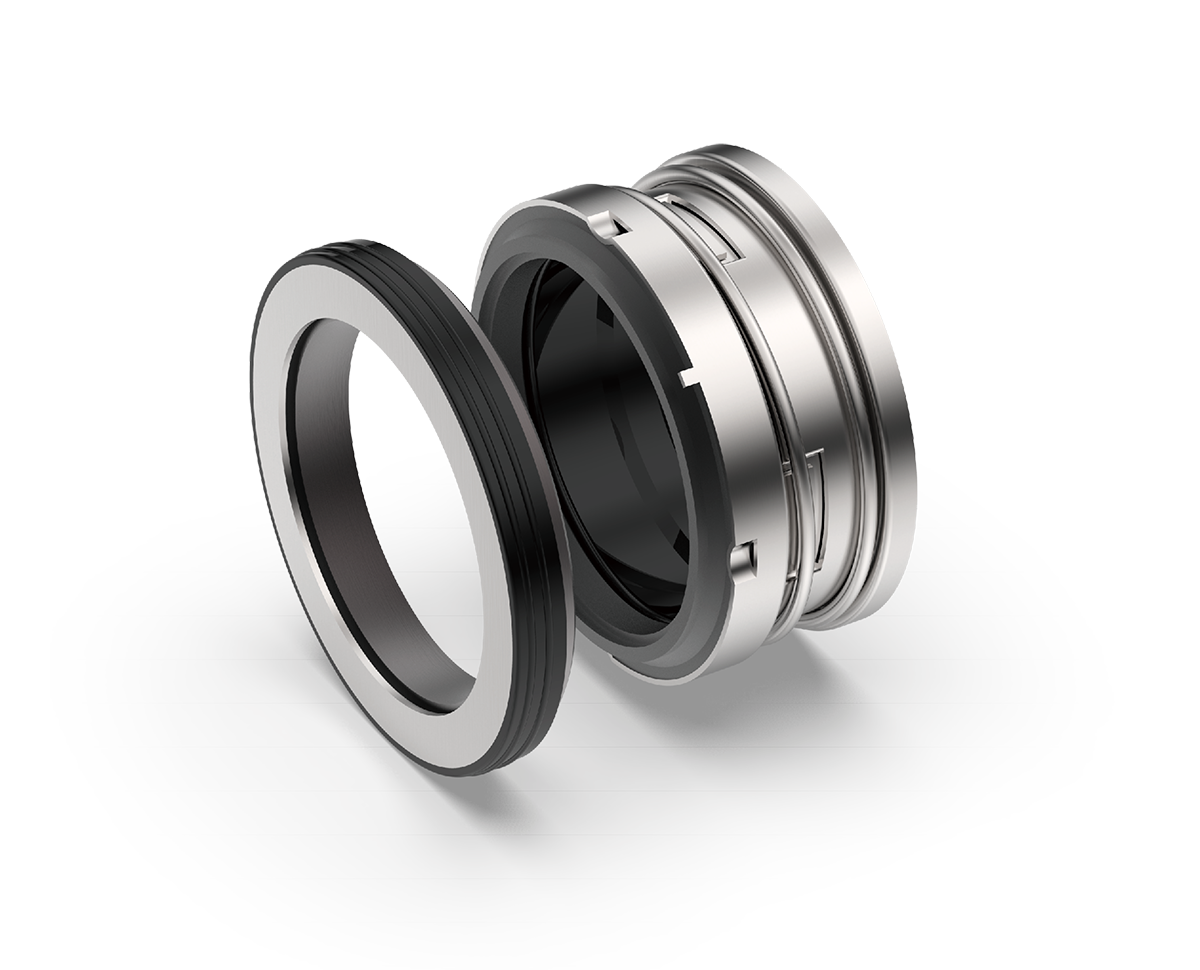

橡膠波紋管式機械密封
工作參數(Operating Conditions)
溫度(Temperature) ：-20℃～ +120℃
壓力(Pressure)：≤ 2.4MPa
線速度(Speed)：≤ 15m/s適用介質(Applications)
清水、污水、油及其它弱腐蝕介質
Clean water, sewage water, oil and other weak corrosive fluids
材料(Materials)
動環(Rotary Ring)：B,A,Q2,U2
靜環(Seat Ring)：U2,Q1,Q2,V1
輔助密封(Secondary Seal)：V,P,E
彈簧及結構件(Spring and Metal Parts)：F,G靜環適合類型(Seat Types)
標準(Standard)：G60
可替換(Alternative)：G6,G4,G50
